DC190L

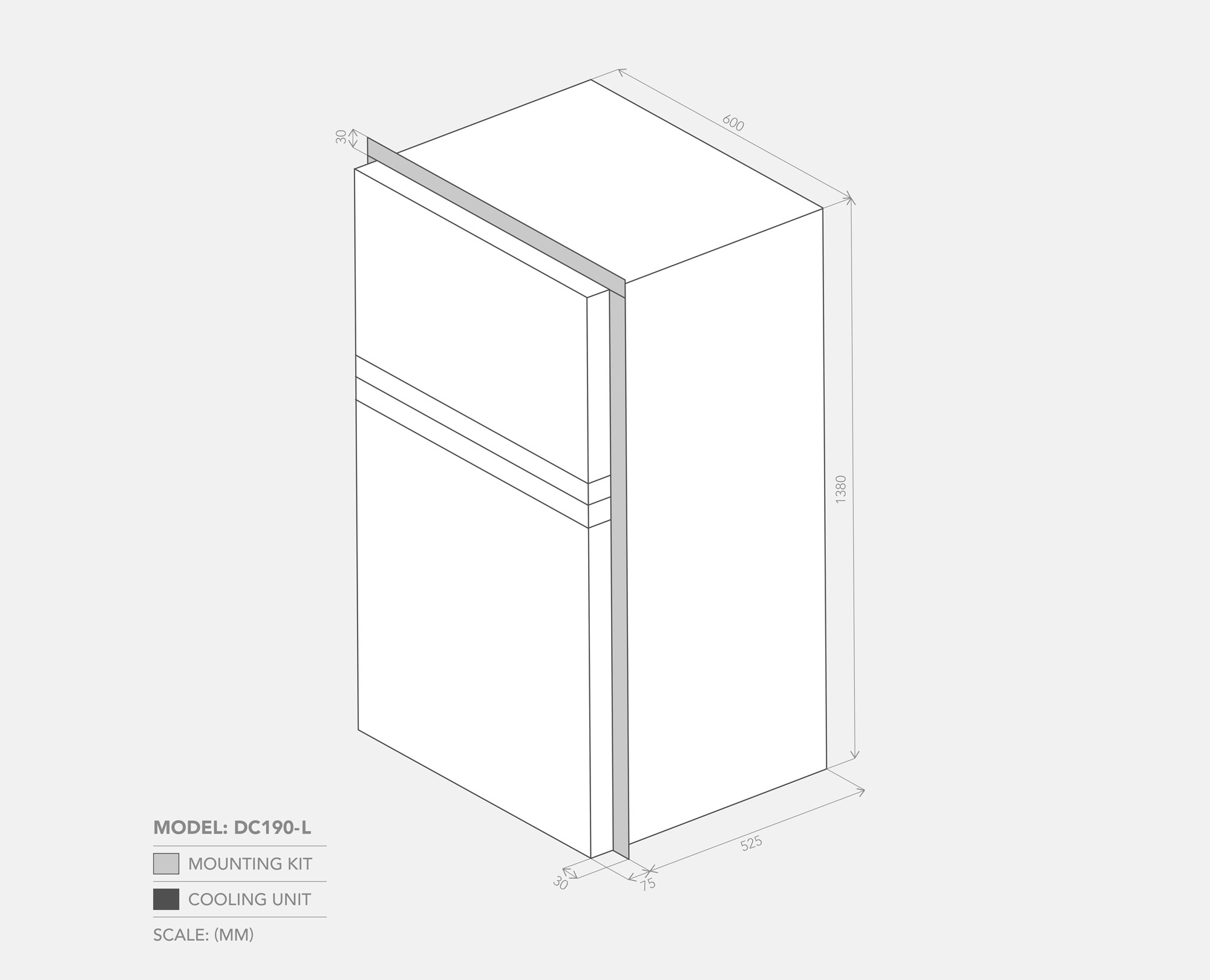

DC190-L Dimensions

DC190L

190 Litre - DC 12V / 24V

In stock

White
Clear
Free Shipping in Australia - Despatched within 24hrs.
  • – Ultra low power design
  • – Genuine Bushman cooling system
  • – Beautifully finished
  • – Large door storage
  • – Reversible doors
  • – Tropical ‘T’ rating
  • – Door latch for mobile use
  • – 3 year warranty
  • – Includes mounting kit

Overview

The Bushman DC190-L is extremely efficient and light on power.

This fridge is designed specifically for mobile installations and off-grid living in Australia. We use a very large cooling system, extra-thick insulation and a low-speed compressor which significantly reduces power consumption. Making this a brilliant fridge for caravans, RV”s, boats and off-grid situations.

All our DC-L models are big on space, beautifully appointed and have full steel, powder-coated finished sides, so they can be installed into a cavity or used in a free-standing position.

Features

  • Icon
    Reliable
    • Nidec Danfoss BD50 compressor
    • German designed / Japanese owned
    • Full steel fridge cabinet
    • Safety glass shelves
    • Bushman quality guarantee
    • 3 Year warranty
  • Icon
    Ultra low power
    • Genuine Bushman designed cooling system
    • Large external, wire on tube condenser
    • Built in vertical fan to assist air flow
    • Thick insulation 80mm freezer, 50mm fridge
    • Climate class “T” tropical
    • Average 2.0 Ah over 24hrs (25º ambient 4º fridge)
    • Max amp draw 4.5 amps on 12V system
  • Icon
    Easy to Use
    • Wide door storage for large bottles
    • Big 45 litre freezer
    • Adjustable shelves
    • Interior light
    • Door latch for mobile use
    • Reversible doors
    • Includes mounting kit

Specifications

  • Fridge measurements: W 600 mm, D 600 mm, H 1380 mm
  • Cut out dimensions: W 605 mm, D 575 mm, H 1385 mm
  • Fixed speed drive compressor (12V 4.5A, 24V 2.25A)
  • Battery protection 12V: Cut in 10.9V, Cut out 9.6V
  • Battery protection 24V: Cut in 22.7V, Cut out 21.3V
  • Maximum input voltage: 12V = 17V max, 24V = 31.5V max
  • Weight 50 kg
